A battery room has to work for the person who maintains it. On the drawing the racks fit and the aisles look generous. The real test comes on the day the first string is charged and somebody has to walk between the rows with a hydrometer. Most of the failures I have seen in standby DC installations since 1992 trace to a room that was drawn for the equipment and not for that person. The requirements below are the ones that pass that test, with the standards that carry them.
Space and structure

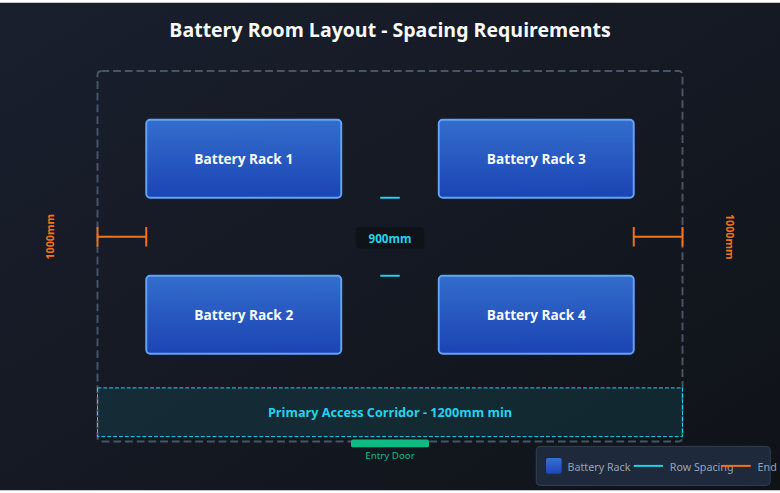

Leave 900 mm between battery rows for maintenance access. Leave 1,200 mm on the primary corridor, so that a replacement cell can be moved on a trolley and does not have to be carried. Keep a clear path to the exit. Allow room for monitoring equipment, because it will be added after commissioning whether or not it was on the drawing.
The floor carries more than people expect. Industrial strings load it at between 1,500 and 3,000 kg per square metre, depending on chemistry and rack design. That rules out most upper floors without a structural assessment. A flooded installation needs an acid-resistant coating to AS/NZS 2430.3.2, because the electrolyte will eventually reach the floor whatever the procedures say. In a seismic region the racks must be restrained as well.
Ventilation

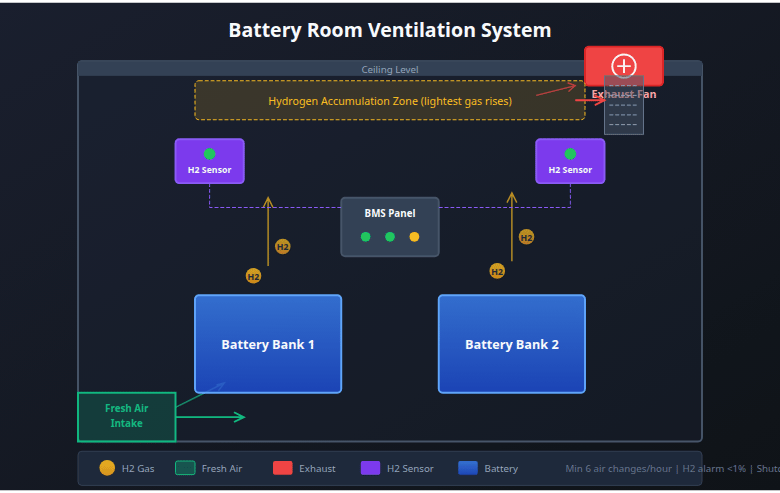

A lead-acid battery on charge makes hydrogen. The room's first job is to keep the hydrogen below 1% by volume, well under the 4% at which it burns. The working rule is six air changes an hour. Put the intake low and the exhaust high, because hydrogen collects at the ceiling. Whether the ventilation is natural or mechanical depends on the room's volume and the building around it.
Detection sits alongside ventilation. The usual setpoints are an alarm below 1% and an automatic shutdown of charging at 2%. The ventilation rate must be calculated, not guessed, and EN 50272-2 gives the method. The hydrogen venting calculator applies it to your cell count, capacity and charging regime.
Safety equipment
The room needs an eyewash station within six metres of the cells, and spill containment sized at 110% of the electrolyte volume. It needs extinguishers suited to the chemistry (Class D where lithium is present) and emergency lighting on its own battery. It needs continuous hydrogen monitoring, and signage that a contractor who has never seen the room can follow. None of this is expensive compared with the cost of the string. I have walked into at least one room where all of it was missing.
Electrical design

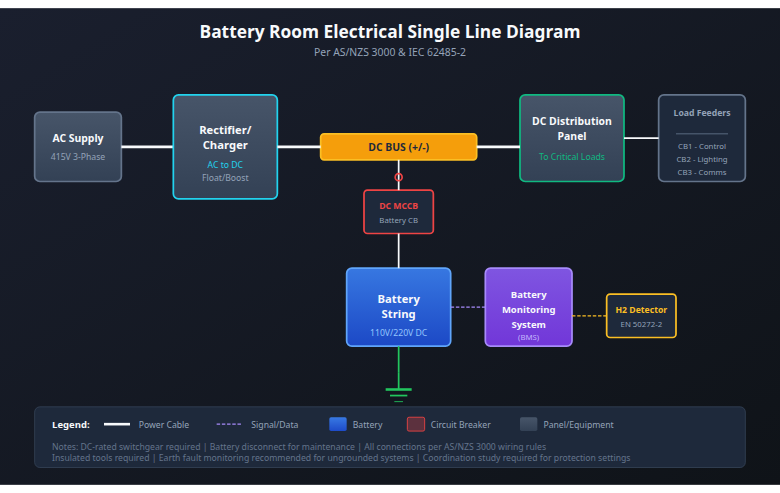

The switchgear must be rated for DC at the battery voltage. A DC-rated device is different from an AC breaker of the same current rating, and it is the item most often substituted on site. Monitoring covers string voltage, current and temperature at least, and cell voltages where the application justifies it. Earthing follows AS/NZS 3000, and tools are insulated. Size the cables for the maximum discharge current, not the float current, because the cables matter most when the load is on the battery.
The standards
The standards are AS/NZS 3000 for the electrical installation, AS/NZS 2676 for installing the batteries and AS/NZS 3017 for verification. AS/NZS 5139 applies where the installation is a battery energy storage system. IEEE 1635 with ASHRAE 21 covers ventilation, and IEC 62485-2 covers the safety of the secondary batteries. A designer should be able to say which clause of which standard drove each decision on the drawing. Citing the list of standards is not enough.
Chemistry changes the room
Choose the chemistry first, because the room follows from it. Valve-regulated lead-acid needs standard ventilation, a controlled 20 to 25 °C and hydrogen detection. Flooded lead-acid needs more ventilation, acid containment and the coated floor. Lithium iron phosphate loads the floor lightly and tolerates 15 to 35 °C. Its safety case rests on thermal runaway, not hydrogen, so the room is designed differently. Nickel-cadmium tolerates 0 to 40 °C and brings cadmium handling with it.
